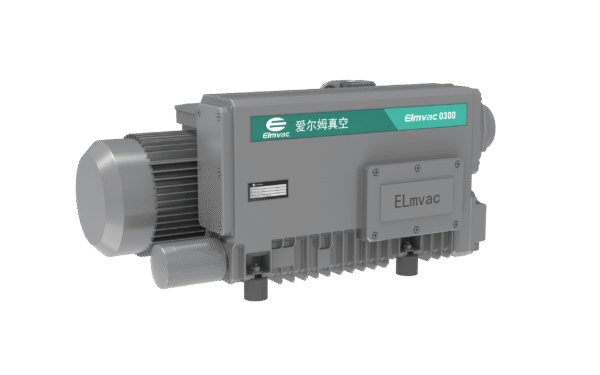

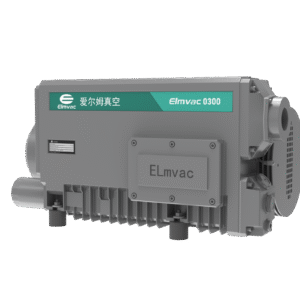

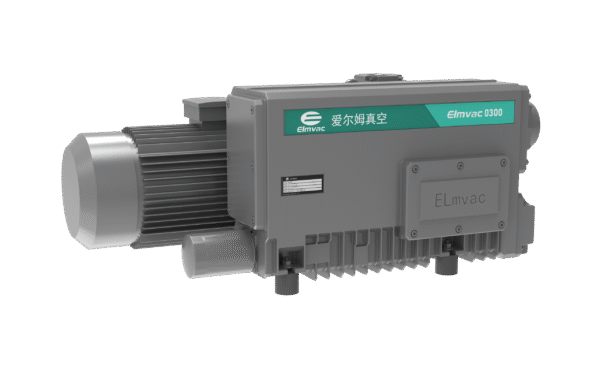

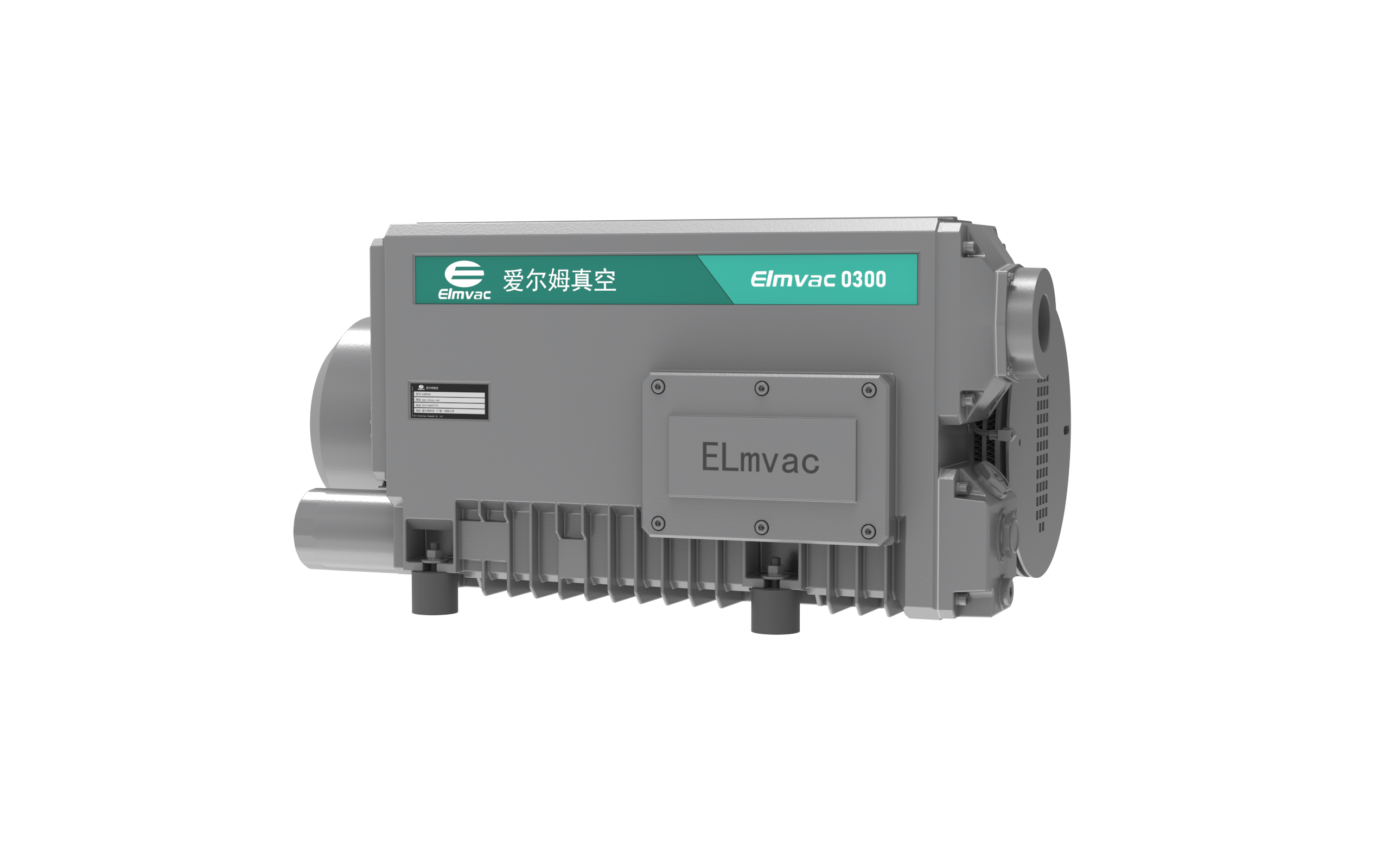

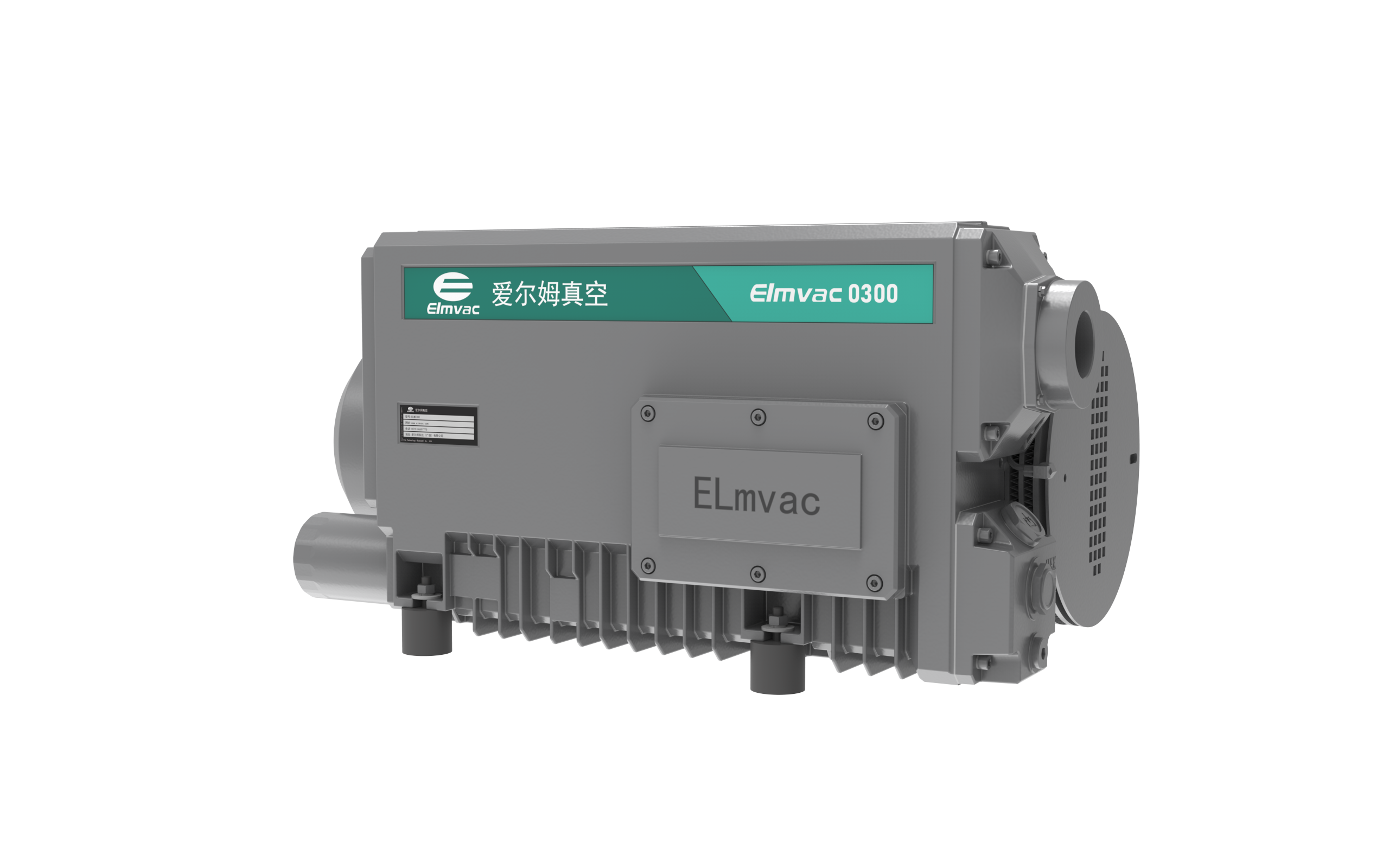

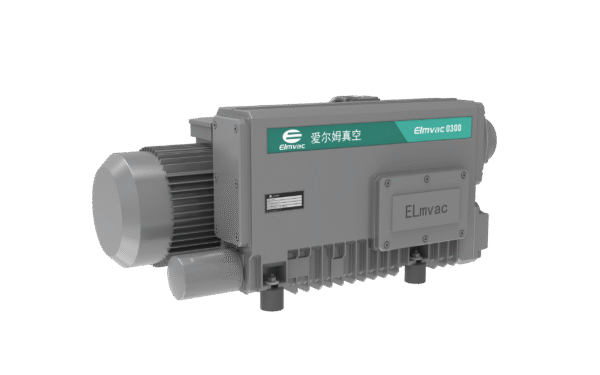

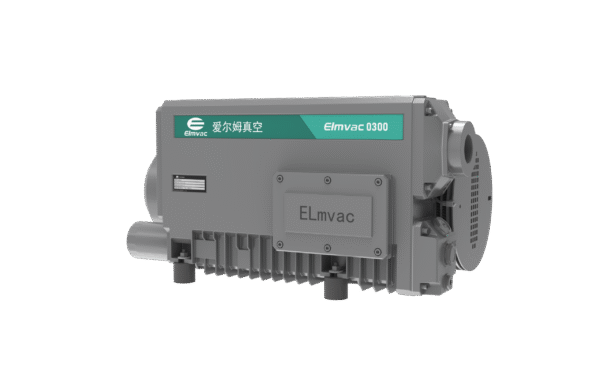

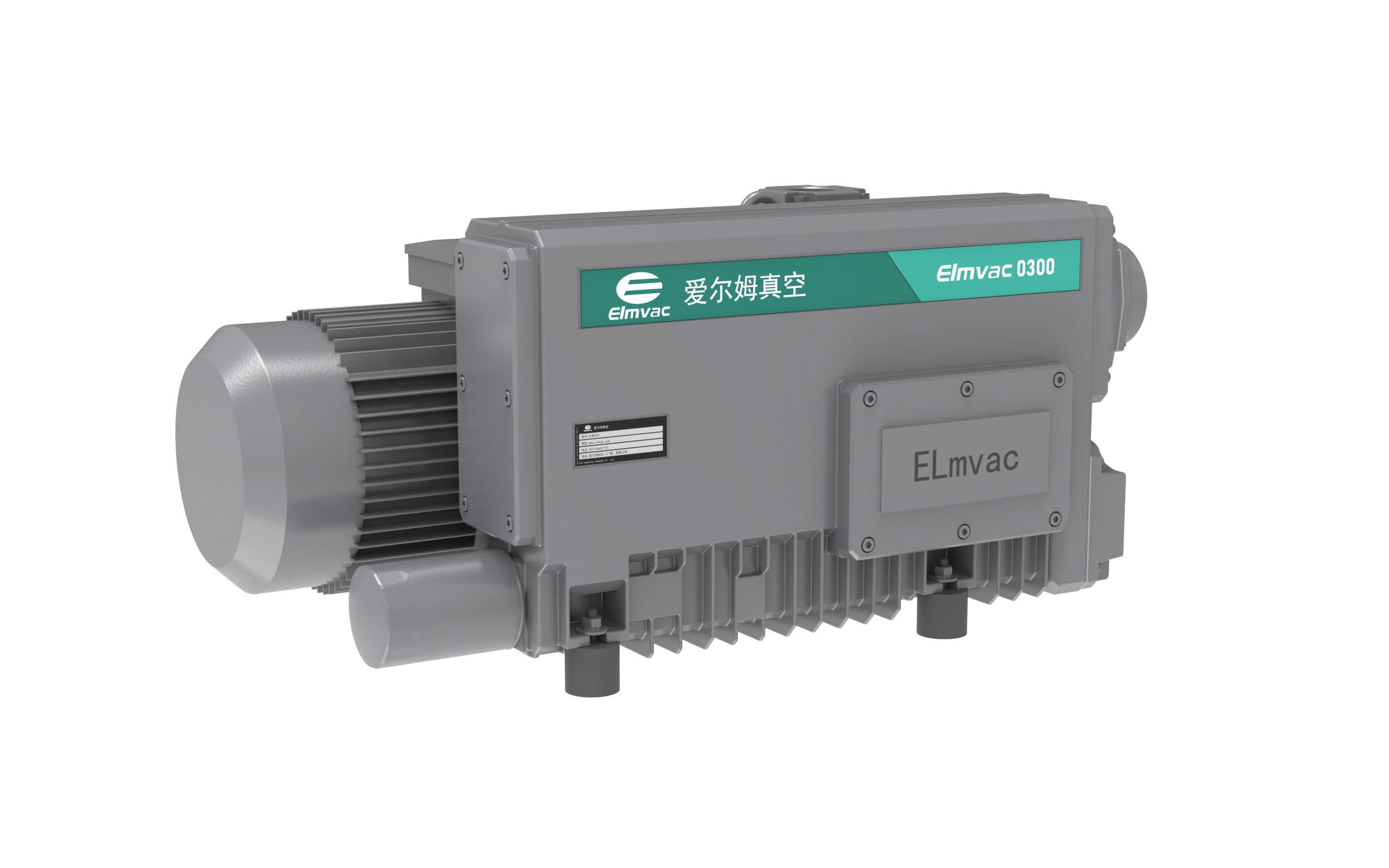

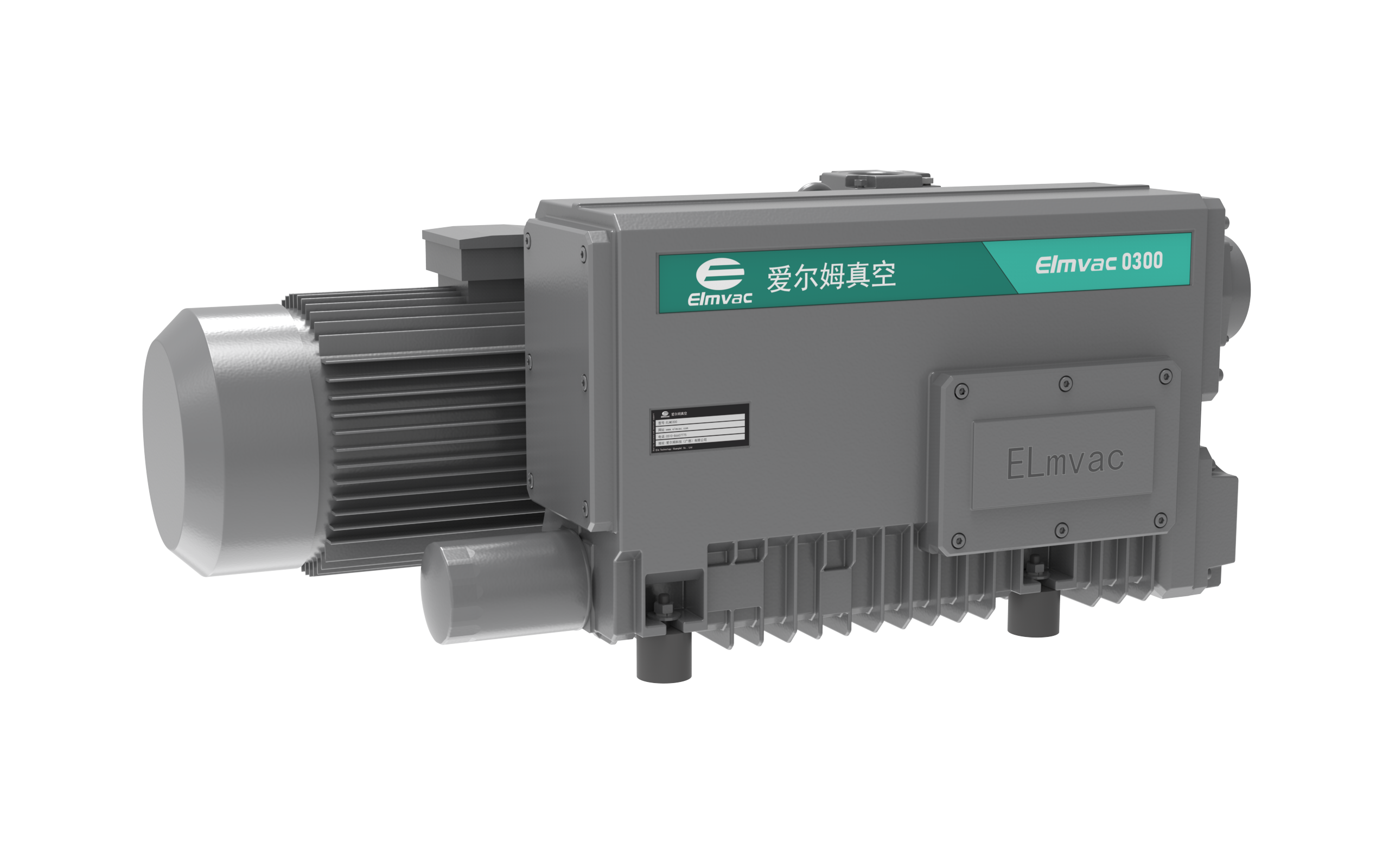

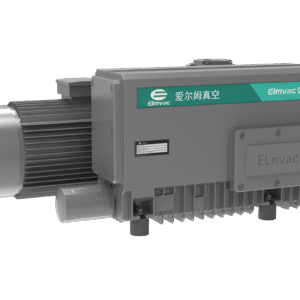

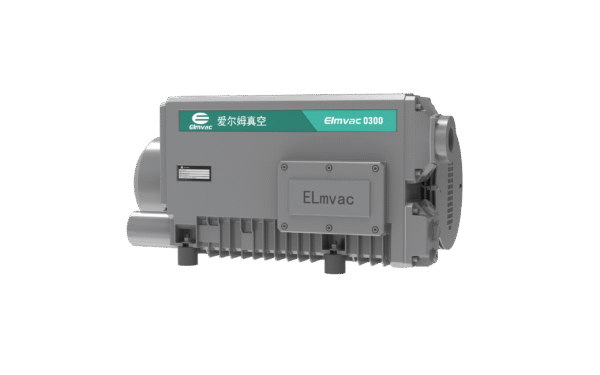

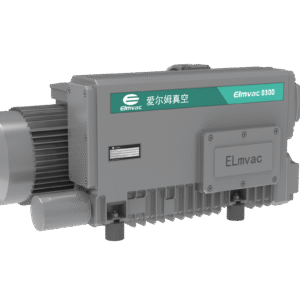

XD-10 Single-Stage Direct-Coupled Rotary Vane Pump
Pumping Speed: 10 m³/h
Ultimate Pressure: 2×10⁻² Pa
Power: 0.37 kW
Voltage: 380/220 V
Product Overview and Features
The single-stage direct-coupled rotary vane pump is driven directly by an electric motor, with a rotor speed of up to 1440 RPM. It features a compact structure, small size, light weight, high pumping speed, low vibration, and low noise. This pump is not only energy-efficient but also easy to install and maintain, ensuring safe and reliable operation.
Technical Parameters
| Unit | XD-10 |
| Pumping Speed (m³/h) | 10 |
| Ultimate Pressure (Pa) | 2×10⁻² |
| Motor Power (kW) | 0.37 |
| Pump Speed (rpm) | 1440 |
| Oil Capacity (L) | 0.5 |
| Inlet Size | G½ |
| Pump Weight (kg) | 16 |
Model Specifications
| Model | Pumping Speed (m³/h) | Ultimate Pressure (Pa) | Motor Power (kW) | Pump Speed (rpm) | Oil Capacity (L) | Inlet Size | Pump Weight (kg) | Voltage (V) |
| XD-10 | 10 | 2×10⁻² | 0.37 | 1440 | 0.5 | G½ | 16 | 380/220 |
| XD-016 | 16 | 2×10⁻² | 0.37 | 1440 | 0.5 | G½ | 18 | 380/220 |
| XD-20 | 20 | 2×10⁻² | 0.75 | 2800 | 0.5 | G1½ | 19 | 380/220 |
| XD-025 | 25 | 2×10⁻² | 0.75 | 2800 | 1.0 | G1¼ | 19 | 380/220 |
| XD-40 | 40 | 2×10⁻² | 1.1 | 1440 | 1.5 | G1¼ | 60 | 380/220 |
| XD-063 | 63 | 2×10⁻² | 1.5 | 1440 | 2.0 | G1¼ | 22 | 380/220 |
| XD-100 | 100 | 2×10⁻² | 3 | 1440 | 4.0 | G2 | 115 | 380 |
| XD-160 | 160 | 2×10⁻² | 4 | 1440 | 9.0 | G2½ | 145 | 380 |
| XD-250 | 250 | 2×10⁻² | 7.5 | 1440 | 9.0 | – | 200 | 380 |
