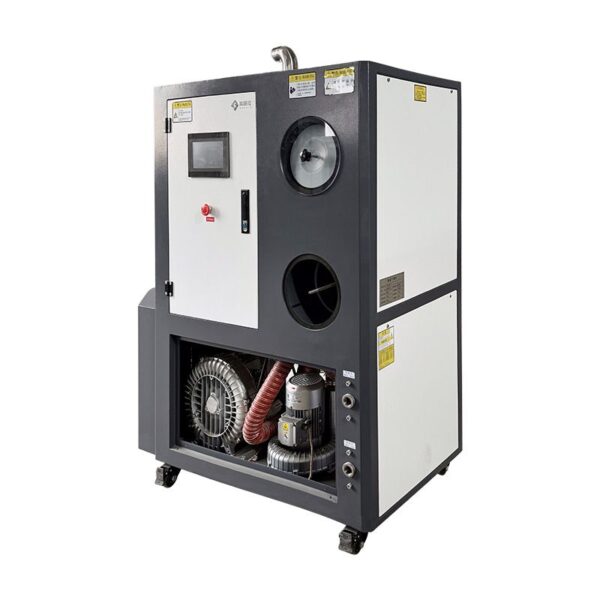

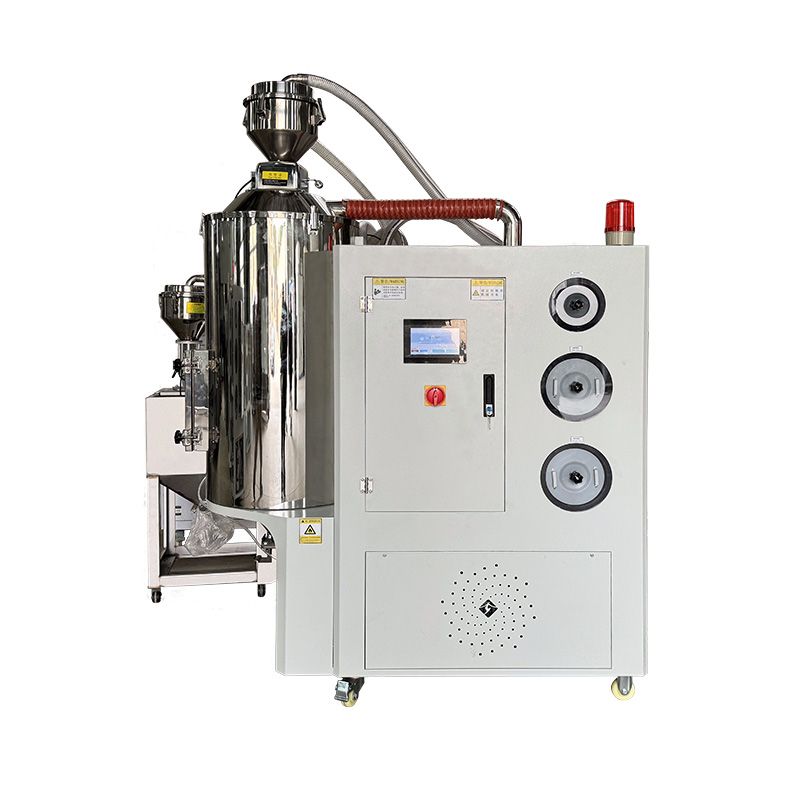

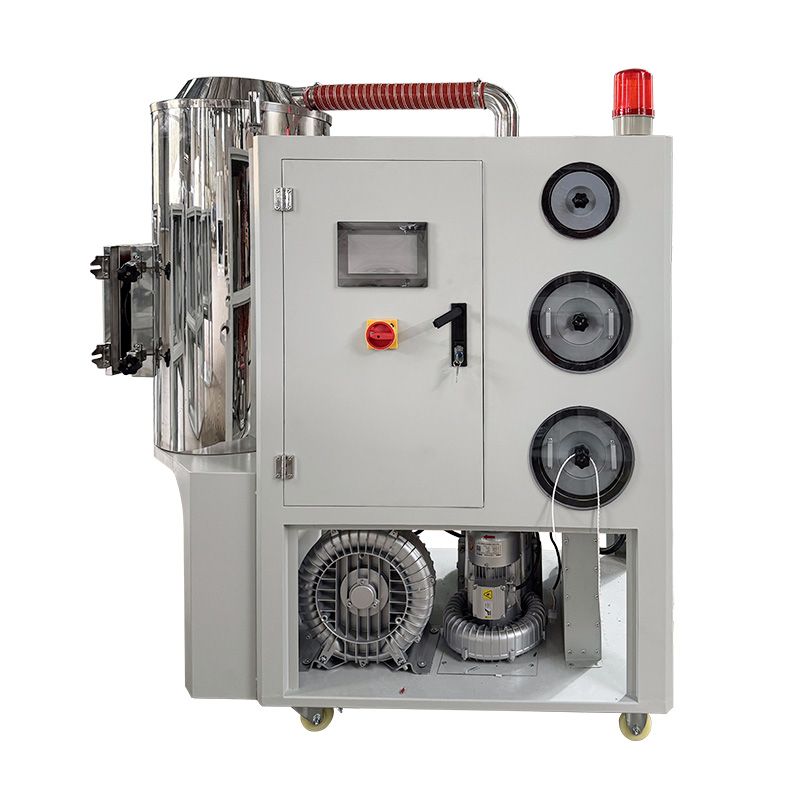

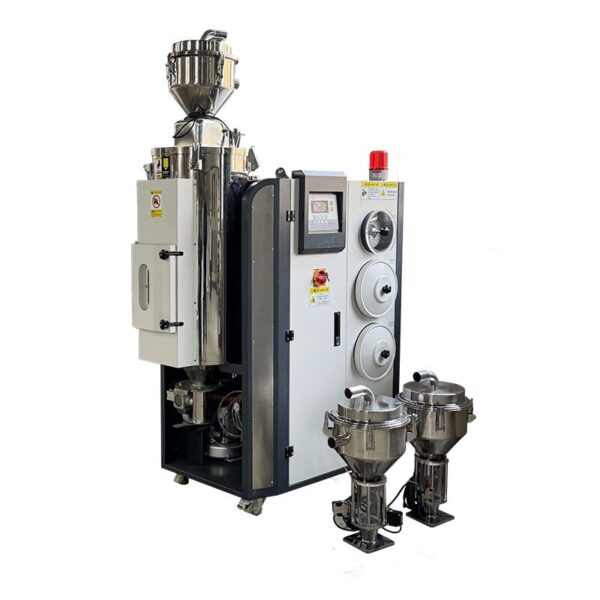

Dehumidification Dryer

In plastic processing, the product has shrinkage lines, silver lines, bubbles, cracks, flow marks, poor transparency and other phenomena. The main reason for these poor qualities is that the plastic is not fully dried before molding. Engineering plastics such as PA, PET, PU, TPU, PC, PBT, CA and other hygroscopic raw materials have moisture infiltrating into the particles. Traditional hot air drying cannot completely dry them. The three-in-one machine can maintain a dry dew point below -40 degrees Celsius for a long time through its unique rotary dehumidification principle, and quickly dry the plastic particles to meet production requirements.

Technical Parameters

Model	25KG	50KG	75KG	100KG	150KG	200KG	300KG	400KG
Insulation Barrel Capacity(KG)	25	50	75	100	150	200	300	400
Power Supply	380V/50hz
Dehumidification Air Volume(m³/hr)	50	80	80	100	150	200	300	400
Drying Electric Heating Power(KW)	2.7	4	4	6	7	10	15	18
Drying Fan Power(KW)	0.37	0.37	0.55	0.55	0.75	1.1	1.5	2.2
Regeneration Electric Heating Power(KW)	2	2	2.7	2.7	3.5	4	4	6
Regeneration Fan Power(KW)	0.18	0.18	0.18	0.25	0.37	0.37	0.55	0.75
Feeding Fan Power(KW)	1.1	1.1	1.1	1.5	1.5	1.5	1.5	2.2
Piping(M)	12	12	12	12	15	15	15	15
Dimensions(CM)	65115140	65115152	65115162	73133162	73133198	84143240	90163220	90163246

The above parameters are for reference only,the actual product shall prevail.
